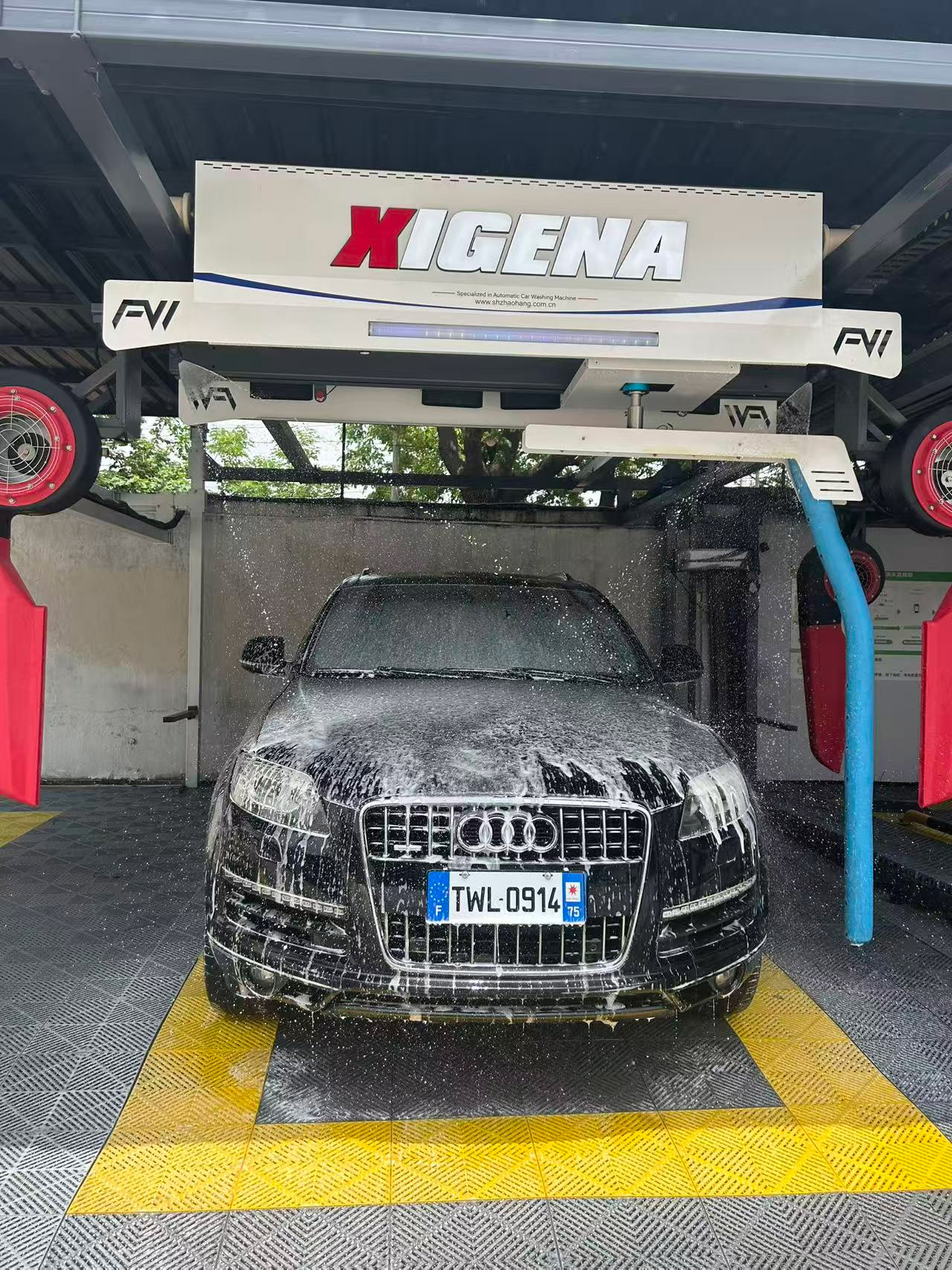

XIGENA three-axis touchless automatic car wash systems are designed for commercial car wash applications with configurable wash programs. Reference models include X-S75F, X-S110, X-S150, X-150P (three-axis version) and X-S185. Individual functions and options depend on the confirmed model configuration. Reference machine dimensions are 6.2 × 4.1 × 3.2 m; these are machine dimensions, not the complete installation-site dimensions. Final vehicle clearance, site layout and utilities must be confirmed for each project. According to model and project requirements, available configurations may include voltage/frequency, interface and voice language, branding, compatible payment systems and wash-program settings. XIGENA provides installation guidance and remote commissioning support; on-site installation is arranged separately for selected projects and regions. Please share your vehicle types and dimensions, available site dimensions, local electrical supply, project destination and required washing functions to request a suitable configuration.
| Three-Axis Car Wash Machine Parameter Configuration Table | |||||
| Model | X-S75F (Three-Axis) | X-S110 (Three-Axis) | X-S150 (Three-Axis) | X-150p (Three-Axis) | X-S185 (Three-Axis) |
| Standard machine dimensions | 6.2m*4.1m*3.2m | 6.2m*4.1m*3.2m | 6.2m*4.1m*3.2m | 6.2m*4.1m*3.2m | 6.2m*4.1m*3.2m |
| Standard washing dimensions | 5.3m*2.5m*2m | 5.3m*2.5m*2m | 5.3m*2.5m*2m | 5.3m*2.5m*2m | 5.3m*2.5m*2m |
| Power requirement | Default 380V/35kW (customizable) | Default 380V/35kW (customizable) | Default 380V/45kW (customizable) | Default 380V/45kW (customizable) | Default 380V/50kW (customizable) |
| Drive motor | Custom motor 7.5KW | Custom motor 11KW | Custom motor 15KW | Custom motor 15KW | Custom motor 18.5KW |
| PLC | Taiwan Delta | Taiwan Delta | Taiwan Delta | Taiwan Delta | Taiwan Delta |
| Inverter | PLC controlled | PLC controlled | PLC controlled | PLC controlled | PLC controlled |
| Touchscreen | US Weinview | US Weinview | US Weinview | US Weinview | US Weinview |
| Operating system language | Default English (customizable) | Default English (customizable) | Default English (customizable) | Default English (customizable) | Default English (customizable) |
| Sensor | Korea Autonics | Korea Autonics | Korea Autonics | Korea Autonics | Korea Autonics |
| Longitudinal drive | Stepless variable-frequency motor (longitudinal drive) | Stepless variable-frequency motor (longitudinal drive) | Stepless variable-frequency motor (longitudinal drive) | Stepless variable-frequency motor (longitudinal drive) | Stepless variable-frequency motor (longitudinal drive) |
| Transverse drive | Stepless variable-frequency motor | Stepless variable-frequency motor | Stepless variable-frequency motor | Stepless variable-frequency motor | Stepless variable-frequency motor |
| Transmission motor | Stepper motor | Stepper motor | Stepper motor | Stepper motor | Stepper motor |
| Detection system | Photoelectric switch / ultrasonic | Photoelectric switch / ultrasonic | Photoelectric switch / ultrasonic | Photoelectric switch / ultrasonic | Photoelectric switch / ultrasonic |
| Remote assistance system | Standard | Standard | Standard | Standard | Standard |
| High-pressure plunger pump | Stainless steel centrifugal pump | German Pinfu pump | German Botuo pump | German Pinfu pump | German Pinfu pump |
| Washing pressure | 50kg/cm² | 60kg/cm² | 70kg/cm² | 70kg/cm² | 100kg/cm² |
| Integrated frame | Galvanized anti-rust powder coating | Galvanized anti-rust powder coating | Galvanized anti-rust powder coating | Galvanized anti-rust powder coating | Galvanized anti-rust powder coating |
| Frame column dimensions | 100mm*100mm | 100mm*100mm | 100mm*100mm | 100mm*100mm | 100mm*100mm |
| Frame safety lock | Standard | Standard | Standard | Standard | Standard |
| Remote start | Standard | Standard | Standard | Standard | Standard |
| QR-code system | Optional | Optional | Optional | Optional | Optional |
| Wash counter | Standard | Standard | Standard | Standard | Standard |
| Customizable wash sequence | Standard | Standard | Standard | Standard | Standard |
| Customizable sequence timing | Standard | Standard | Standard | Standard | Standard |
| Brand logo display | Customizable | Customizable | Customizable | Customizable | Customizable |
| LED message display | Standard | Standard | Standard | Standard | Standard |
| Fault self-diagnosis | Standard | Standard | Standard | Standard | Standard |
| Underbody / wheel washing | Standard | Standard | Standard | Standard | Standard |
| Leakage protection system | Standard | Standard | Standard | Standard | Standard |
| One-touch start / reset | Standard | Standard | Standard | Standard | Standard |
| Intelligent electronic anti-collision | Standard | Standard | Standard | Standard | Standard |
| One-touch drain function | Optional | Optional | Optional | Optional | Optional |
| High-pressure washing | 360° rotating wash | 360° rotating wash | 360° rotating wash | 360° rotating wash | 360° rotating wash |
| Automatic liquid proportioning | Standard | Standard | Standard | Standard | Standard |
| Prewash function | Standard | Standard | Standard | Standard | Standard |
| Foam function | Standard | Standard | Standard | Standard | Standard |
| Wax function | Standard | Standard | Standard | Standard | Standard |
| Colorful waterfall | Optional | Optional | Optional | Optional | Optional |
| Top mobile drying | 4kW*3 groups | 4kW*4 groups | 4kW*4 groups | 5.5kW*4 groups | 5.5kW*4 groups |
| Side mobile drying | 4kW*2 groups | 4kW*2 groups | 5.5kW*2 groups | 5.5kW*2 groups | 7.5kW*2 groups |
| Installation | Installation videos and instructions provided; remote video guidance available | ||||
| After-sales service | One-year warranty for the complete machine; lifetime warranty for PLC computer, drive motor and German Pinfu water pump | ||||
| Number of packing crates | 2 | 3 | 3 | 3 | 3 |
| Gantry crate dimensions | L 3.36m * W 1.11m * H 1.14m | L 3.36m * W 1.11m * H 1.14m | L 3.36m * W 1.11m * H 1.14m | L 3.36m * W 1.11m * H 1.14m | L 3.36m * W 1.11m * H 1.14m |
| Steel frame crate dimensions | L 6.17m * W 0.42m * H 0.62m | L 7.17m * W 0.42m * H 0.62m | L 7.17m * W 0.42m * H 0.62m | L 7.17m * W 0.42m * H 0.62m | L 7.17m * W 0.42m * H 0.62m |
| Water pump crate dimensions | / | L 1.56m * W 0.96m * H 1.14m | L 1.56m * W 0.96m * H 1.14m | L 1.56m * W 0.96m * H 1.14m | L 1.56m * W 0.96m * H 1.14m |
| Packing weight | 1100kg | 1500kg | 1500kg | 1500kg | 1500kg |
| Packing volume | 5.87m³ | 7.58m³ | 7.58m³ | 7.58m³ | 7.58m³ |
